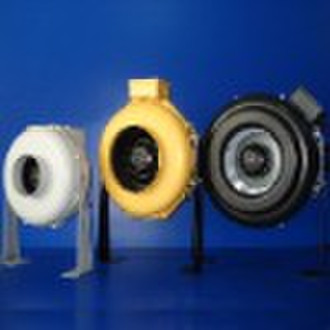

Plastic Ceiling Electric Ventilation Fan with CE c

Plastic Ceiling Electric Ventilation Fan with CE certification1. Features Circular duct fan is a product which bears many national inventions.It's a new type of duct fan with a patented shape. The size of air inlet is the same as air outlet. The fan can be connected with all kinds of air ducts (the size of air inlet and outlet is 100-315MM). Then, it saves a lot of money for pipeline design and installation expenses. The crust matches well with the wind rotors which are designed by aerodynamics. It's designed to alleviate vibrations and noises. Then, it has the features of low noise, high static pressure, low volume, simple installation and low weight.2. Structural characteristics housingThe housing of fan consists of air inlet cover and air outlet cover. It is made of qualified heat galvanized steel plate or plastics and then applies powder-spray surface treatment. The plastic is specialized for environment project use and has good performance of atmosphere erosion protection. The air inlet is designed according to aerodynamics so as to facilitate turbulence entering blade wheels. The size of air inlet is the same as air outlet. It's easy to install. There is screw nail to connect for air inlet cover and air outlet cover so as to facilitate maintenance and cleaning. It is equipped with braces for installation and the lifting and installation is easy.ImpellerThe impeller of HCGF-100 NO 1.9, HCGF -125 NO1.9 fans are made of new type plastics paddle. And the impeller of HCGF -150 NO 2.2, HCGF -160 NO2.2 fans are manufactured by new type plastics paddles and metal plates. The impeller of HCGF -200NO 2.5, HCGF -250 NO2.5, HCGF -305 NO 2.8, HCGF -315 NO 2.8 fans are made of metal paddles. All the above mentioned paddles of impeller are backward inclined. It applies static and dynamic balance tests and meet the accuracy grade of G=2.5 or G=6.3 according to DIN standard.MotorThis external-rotor motor of HCEM series has the features of compact structure, simple installation, economical space,stable operation, low noise, energy saving, high efficiency and infinitive stage transmission. It passed the certifications of ROHS, 3C and CE. The bearings of motor are single-row deep groove ball bearings of NSK brand. It has been filled with lubrication oils and sealed. It doesn't need filling lubrication oils during the course of using. The average effective lifetime is no less than 50,000 hours as well as the lowest lifetime guarantee is 30,000 hours.Junction boxThe plastic junction box uses plastic materials which contain fire retardant component. The connecting terminal applies high-grade insulation materials. The performance of fire protection and electricity leakage protection.3. SpecificationModelVoltageFrequenceCurrentPowerRotate SpeedAir VollumeWhole PressureHCGF(V)(HZ)(A)(W)(r/min)(m3/h)(Pa)100110 23050/600.27612447286336125110 23050/600.28642340368310150110 23050/600.42972450591388160110 23050/600.561252620666357200110 23050/600.6314525481088569250110 23050/600.6815824401147541305110 23050/600.9321524101813653315110 23050/600.9622223731831660
